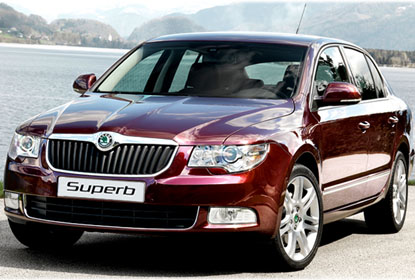

| Skoda Superb TDI Specification |
|
Technical Specifications
| Engine |
|---|
| Engine type |
turbocharged diesel engine, turbocharger with self-aligning blades, in-line, liquid cooling system, high-pressure direct injection system, 16V DOHC, transverse in front |
| Cylinders |
4 |
| Displacement [cm3] |
1968 |
| Max. power/revs [kW(bhp) at rpm] |
103(140)/4000 |
| Max. torque/revs [Nm at rpm] |
320/1750 |
| Transmission |
|---|
| Wheel drive |
front wheel drive |
| Transmission |
automatic 6-speed, DSG, with Tiptronic manual gear changing |
| Chassis |
|---|
| Front axle |
McPherson suspension with lower triangular links and torsion stabiliser |
| Rear axle |
multi-element axle, with one longitudinal and three transverse links, with torsion stabiliser |
| Braking system |
hydraulic dual-diagonal circuit braking system vacuum assisted with Dual Rate system |
| Brake - front |
disc brakes with inner cooling, with single/piston floating caliper |
| Brake - rear |
disc brakes |
| Steering system |
direct rack and pinion steering with electro mechanic power steering |
| Wheels |
7J x 16 inch |
| Tyres |
205/55 R16 |
| Outside dimensions |
|---|
| Length [mm] |
4838 |
| Width [mm] |
1817 |
| Height [mm] |
1482 |
| Wheel base [mm] |
2761 |
| Ground clearance [mm] |
158 |
| Inside dimensions |
|---|
| Storage capacity |
565 |
| Storage capacity with rear seatback folded down |
1670 |
| Weights |
|---|
| Kerb weight [kg] |
1593 |
| Gross weight [kg] |
2119 |
| Liquids |
|---|
| Tank capacity [l] |
60 |
| Performance |
|---|
| Turning circle diameter[m] |
10.8 |
|
|
|
|
|
