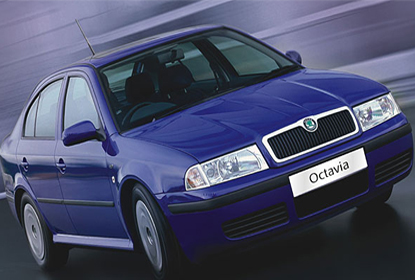

| Skoda Octavia 1.9 TDI Diesel Specification |
|
Technical Specifications
| Engine |
|---|
| Engine type |
turbocharged diesel engine, turbocharger with self-aligning blades, in-line, liquid cooling system, direct injection, OHC, transverse in front |
| Cylinders |
4 |
| Displacement [cm3] |
1896 |
| Max. power/revs [kW(bhp) at rpm] |
66(90)/4000 |
| Max. torque/revs [Nm at rpm] |
210/1900 |
| Fuel injection system |
electronically controlled direct injection |
| Ignition |
microprocessor controlled electronic ignition system |
| Emission compliance |
Bharat Stage III |
| Transmission |
|---|
| Wheel drive |
front wheel drive |
| Clutch |
hydraulic single dry clutch disc with membrane spring, asbestos free |
| Transmission |
manual 5-speed fully synchronized |
| Chassis |
|---|
| Front axle |
McPherson strut with wishbone arms and torsion stabiliser |
| Rear axle |
compound link crank-axle with torsion stabiliser |
| Braking system |
hydraulic dual circuit braking system with diagonal interconnection, vacuum assisted |
| Brake - front |
disc brakes with inner cooling, with single/piston floating caliper |
| Brake - rear |
drum brakes |
| Steering system |
direct rack and pinion steering power assisted |
| Wheels |
6.0J x 15 inch |
| Tyres |
195/65 R15 |
| Outside dimensions |
|---|
| Length [mm] |
4507 |
| Width [mm] |
1731 |
| Height [mm] |
1455 |
| Wheel base [mm] |
2512 |
| Ground clearance [mm] |
134 |
| Inside dimensions |
|---|
| Storage capacity |
528 |
| Storage capacity with rear seatback folded down |
1328 |
| Weights |
|---|
| Kerb weight [kg] |
1270 |
| Gross weight [kg] |
1855 |
| Liquids |
|---|
| Tank capacity [l] |
55 |
| Body |
|---|
| Body |
5 door, two compartment, 5 seater |
|
|
|
|
|
